BD Diesel BD Dodge 68RFE Trans Converter Stg 5 Pkg Dodge 2019-2020 2wd

Free UPS Ground Continues for the Month of May!

BD Diesel

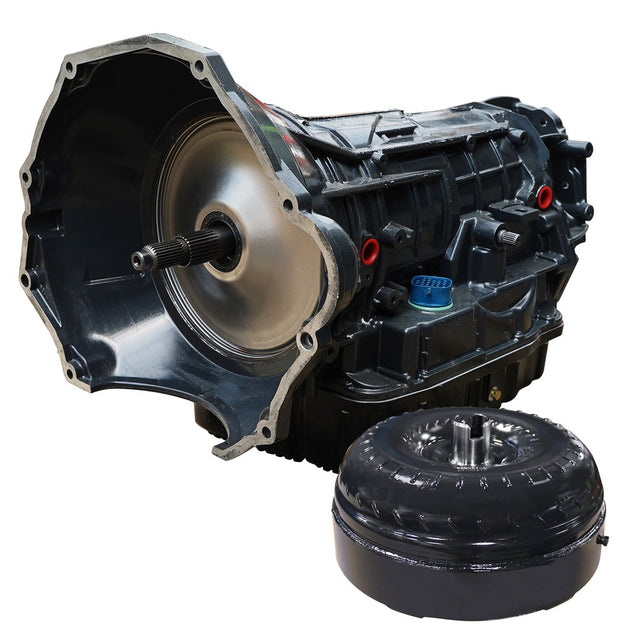

BD Diesel BD Dodge 68RFE Trans Converter Stg 5 Pkg Dodge 2019-2020 2wd c w Billet Input CORE CHARGE OF $2500 APPLIES | 1064292BM

Your Price

$6,921.68 17% off MAP Pricing

MAP

$8,395.00

When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.

Features:

TRANSMISSION:
BD reinforced accumulator plate
BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
Special tuning required for 2019-up applications for increased line pressure. Line pressure controller not included.
TORQUE CONVERTOR:
Triple Disc
Enhanced Stall - Street/Towing applications
HD springs absorb shock of engagement
Stamp forged 1-piece cover
Eliminates warpage from clutch heat
Taller cover can be rebuilt more often
Hard anodized valve body and new solenoid pack installed in every unit
Trapezoid teeth design
Engineered tighter tolerances
Self-centering trapezoid teeth design increases contact decreases wear and chatter
Thrust bearings - not plastic thrust washers
Riveted piston ensures alignment & eliminates vibration or embrittlement from welding
Cast stator designs maximizes torque
New sprag components ensure long term durability
Furnaced brazed turbine fins for improved fluid coupling efficiency
Reduced overall weight by 12lbs compared to competitors
Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
Heavy duty cam & roller design low reverse one way clutch
New 4C billet spring retainer
Steel girdle added to 2C piston to allow for more clutches and broader apply area
BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
Over Drive clutches 33% increase & 2C clutches 33% increase
Custom Big Stack overdrive shaft
