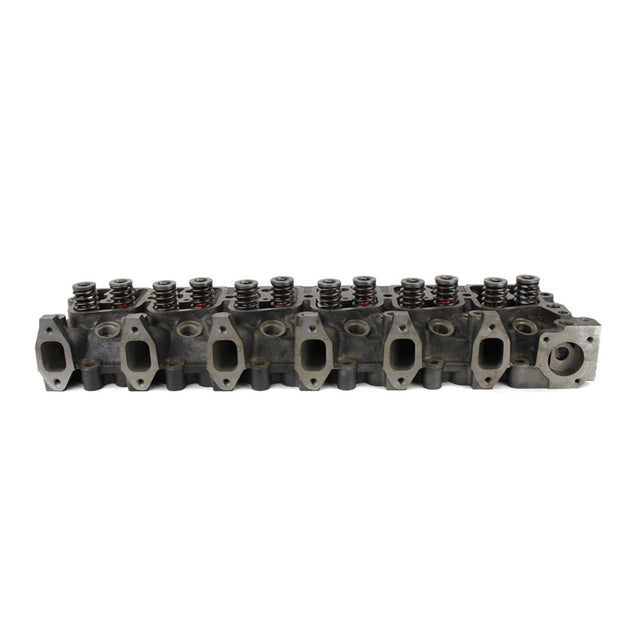

Cummins 5.9L 12 Valve Stage 2 Ported & Polished Cylinder Head w/ Fire Ring Grooves Fits: 12V 5.9 Cummins Item Type: Industrial Injection Stage 2 Cylinder Head Brand: Industrial Injection Part Number: PDM-12VRH Note: Fire Ring Head Gasket sold separately. Core Charge of $700.00 In Addition to Listed Price Heads are first jet washed in a high pressure spray cabinet to remove oil and dirt, then glass beaded to remove carbon. Next they are checked by magnafluxing, (cast iron only) or pressure testing. They are visually inspected for defects that would make them unusable. Valve guides and seats are removed as needed for porting. Port development is accomplished using a superflow 600 flow bench with a computer recording all flow measurements. Many things are considered when designing a cylinder head Port
air flow is only one of the things to think about. Another major concern is port wall thickness. Anyone can get a head to produce high flow numbers, but if doing so leaves the port wall to thin the casting will crack. High performance Diesel heads are more prone to crack because of the thermal shock experienced by excessive intermittent or long term exhaust temperatures. The porting is then preformed using a new 5 Axis CNC Cylinder Head Porting Machine with CAD/CAM software specifically designed for cylinder head porting. CNC porting brings unparalleled accuracy to head porting with each port flowing the same. This helps balance the power that each cylinder produces, making tuning easier. New High Strength Alloy, Heat Treated iron based valve guides are installed. These guides are heat treated to Rockwell 22 Scale, which produces the ultimate in wear resistance. This is far superior to original guide material, including Bronze. The guide incorporates a spiral grove inside the guide to hold oil and aid the lubrication of the valve during engine operation.
