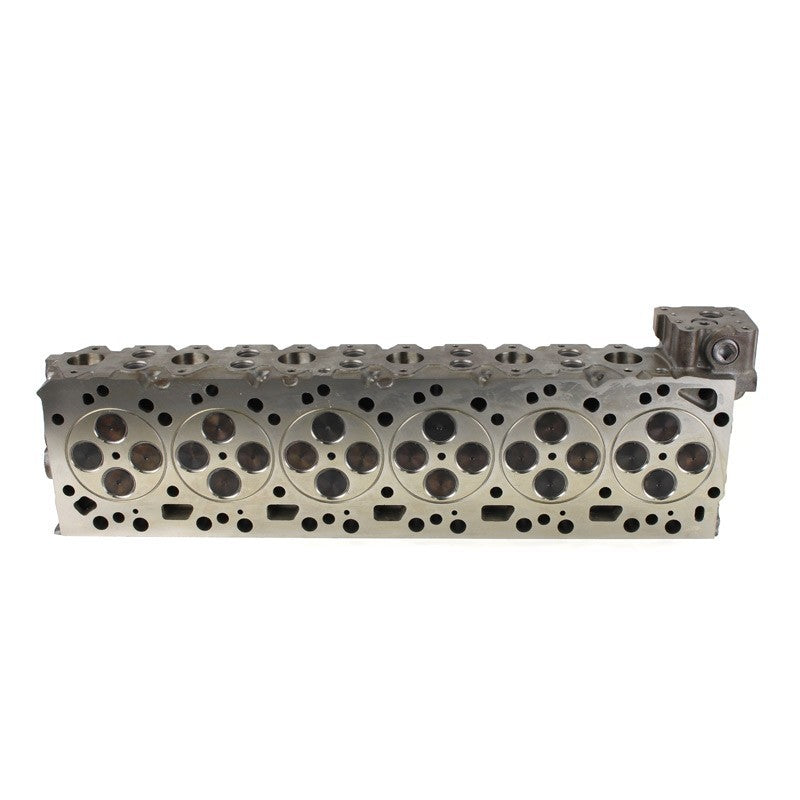

Industrial Injection INDUSTRIAL INJECTION CUMMINS 5.9L CUMMINS CR STAGE 1 CYLINDER HEAD CORE CHARGE OF 700 APPLIES PDM-59CRSTH | PDM-59CRSTH

CNC Ported Cylinder Head: The porting process preformed uses a new 5 Axis CNC Cylinder Head Porting Machine with CAD/CAM software specifically designed for cylinder head porting. CNC porting brings unparalleled accuracy to head porting with each port flowing the same. This helps balance the power that each cylinder produces, making tuning easier. After the CNC process we then hand blend each port to perfection. New Stainless Steel Valves: We use the highest quality upgraded stainless steel valves with a nitrate coating for ultimate durability to out-perform and outlast any aftermarket or OE valves available. High Strength Alloy Valve Guides: New High Strength Alloy, Heat Treated iron based valve guides are installed. These guides are heat treated to Rockwell 22 C Scale, which produces the ultimate in wear resistance. This is far superior to original guide material, including Bronze. The guide incorporates a spiral grove inside the guide to hold oil and aid the lubrication of the valve during engine operation. High Temp Valve Seats: Premium valve seat inserts made from a true Nickel Based Non-Magnetic material that was developed for extreme operating conditions. These performance valve seats immensely reduce the possibility of dropping a valve seat. Drilled & Tapped Coolant Freeze Plugs In Head: The factory head has press in freeze plugs that are prone to leaking and blowing out under the valve cover. This process eliminates the failure from ever happening to you with our cylinder heads. We use high quality steel plugs where others use aluminum that are prone to leak. Fire Ringed Head: The fire ringed head procedure was designed to use with our custom fire ring head gasket which utilizes a radius cut steel fire ring to virtually eliminate head gasket failures while still allowing you to daily drive your vehicle with confidence in its longevity capabilities.

Features:

• The Industrial Injection Ported & Polished Cylinder Head w/ Fire Ring Grooves are designed for the daily driver / weekend warrior in mind.
• Fully CNC ported heads complete and ready to bolt on.
• Core Charge of $700.00 In Addition to Listed Price
• Note: Fire Ring Head Gasket sold separately.
