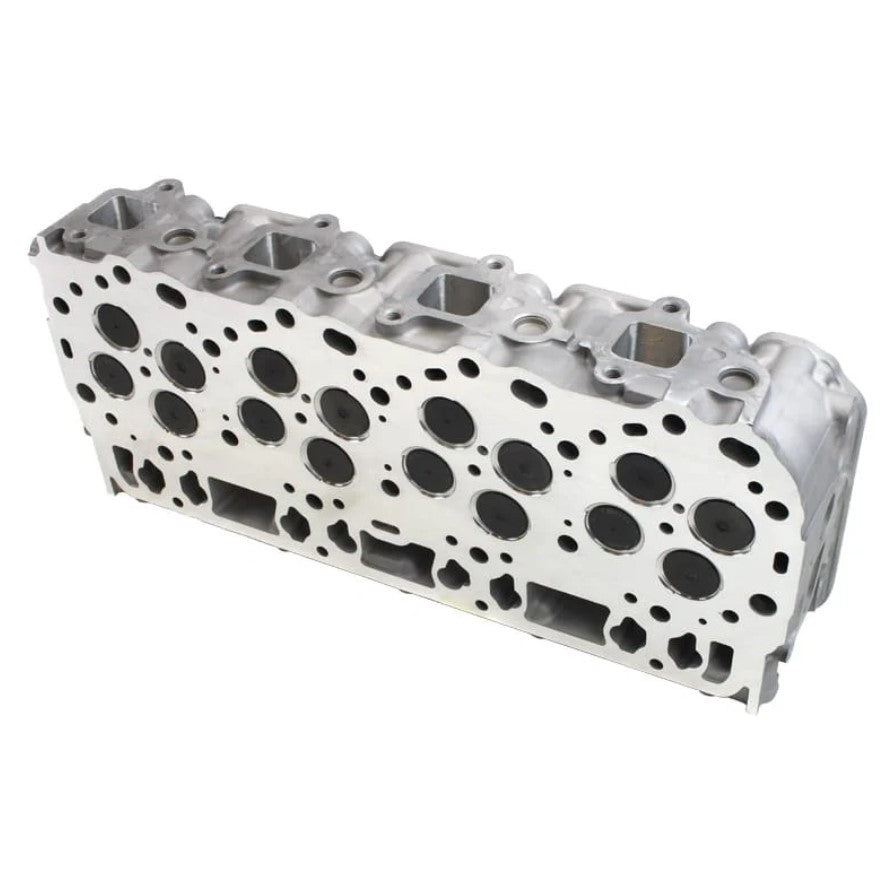

Industrial Injection INDUSTRIAL INJECTION 2001-2004 LB7 DURAMAX PORTED POLISHED CYLINDER HEADS RH LH SET PDM-LB7RH | PDM-LB7RH

The Industrial Injection LB7 Duramax Ported & Polished Cylinder Heads are designed for the racer / sled puller in mind. Fully CNC ported heads with screw in torque lock injector cups complete ready to bolt on. Heads are first jet washed in a high pressure spray cabinet to remove oil and dirt, then glass beaded to remove carbon. Next they are checked by magna fluxing, (cast iron only) or pressure testing. They are visually inspected for defects that would make them unusable. Valve guides and seats are removed as needed for porting. Port development is accomplished using a Superflow 600 flow bench with a computer recording all flow measurements. Many things are considered when designing a cylinder head Port

air flow is only one of the things to think about. Another major concern is port wall thickness. The porting is then preformed using a new 5 Axis CNC Cylinder Head Porting Machine with CAD/CAM software specifically designed for cylinder head porting. CNC porting brings unparalleled accuracy to head porting with each port flowing the same. This helps balance the power that each cylinder produces, making tuning easier. New High Strength Alloy, Heat Treated iron based valve guides are installed. These guides are heat treated to Rockwell 22 Scale, which produces the ultimate in wear resistance. This is far superior to original guide material, including Bronze. The guide incorporates a spiral grove inside the guide to hold oil and aid the lubrication of the valve during engine operation. Guides are then honed (not reamed) to exact size using a diamond honing mandrel. Diamond abrasives allow for consistency of size, surface finish, and bore geometry with no variation from guide to guide. The guide size is then verified using a valve guide bore gauge.

Features:

• 5 Axis CNC Cylinder Head Porting Machine with CAD/CAM software specifically designed for cylinder head porting
• Screw in injector torque lock cups
• Diamond Honed Guides
• Unshrouded Valves
• High Strength Alloy, Heat Treated iron based valve guides
• Premium valve seat inserts made from a true Nickel Based Non-Magnetic material
• multi angle valve job
• 130LB valve springs
