Pacbrake PacBrake BRAVO Premium 0.5gal Kit (425 Compressor Water Separator Air Accessory Kit 0.5gal Tank No Remote) HP30040-CB1 | HP30040-CB1

Read More

PacBrake BRAVO Premium 0.5gal Kit (425 Compressor Water Separator Air Accessory Kit 0.5gal Tank No Remote) HP30040-CB1

Overview

Meet the HP30040-CB1 - Pacbrake's most complete Wireless Air Control Kit. This combo kit pairs wireless air management with a ½-gallon air tank, moisture protection, and full accessory capability - everything you need to run a serious onboard air system right out of the box.

Want an independent remote control in addition to phone app control? Just add an HP10660 remote to your order.

---

Product Description

The HP30040-CB1 gives you the full BRAVO™ experience without the guesswork of piecing it together. Wireless control, stored air capacity, DriAir™ moisture protection, and a complete accessory kit - all bundled and ready to install. No drilling, no cutting, and no sourcing separate components. Just push-to-connect fittings, plug-in wiring, and a sealed waterproof assembly that's up and running in under an hour.

Ignition-switched power means zero parasitic draw, and ultra operation keeps things comfortable on the road.

WHAT'S INCLUDED

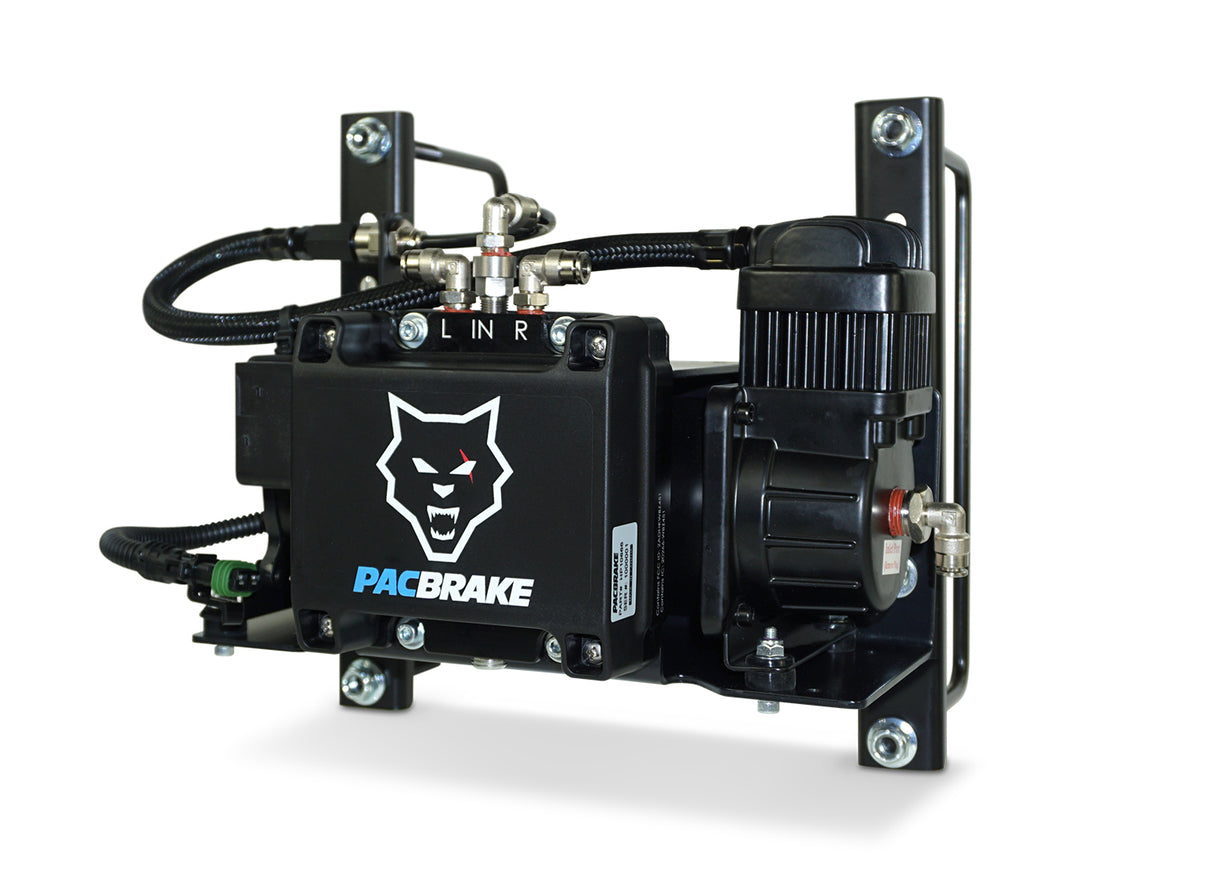

• HP30040-QM – Wireless Air Control Kit with 425 Series compressor. Up to 150 PSI, 1.75 CFM, and 100% duty cycle at 100 PSI. IP67-sealed for total weatherproof durability.

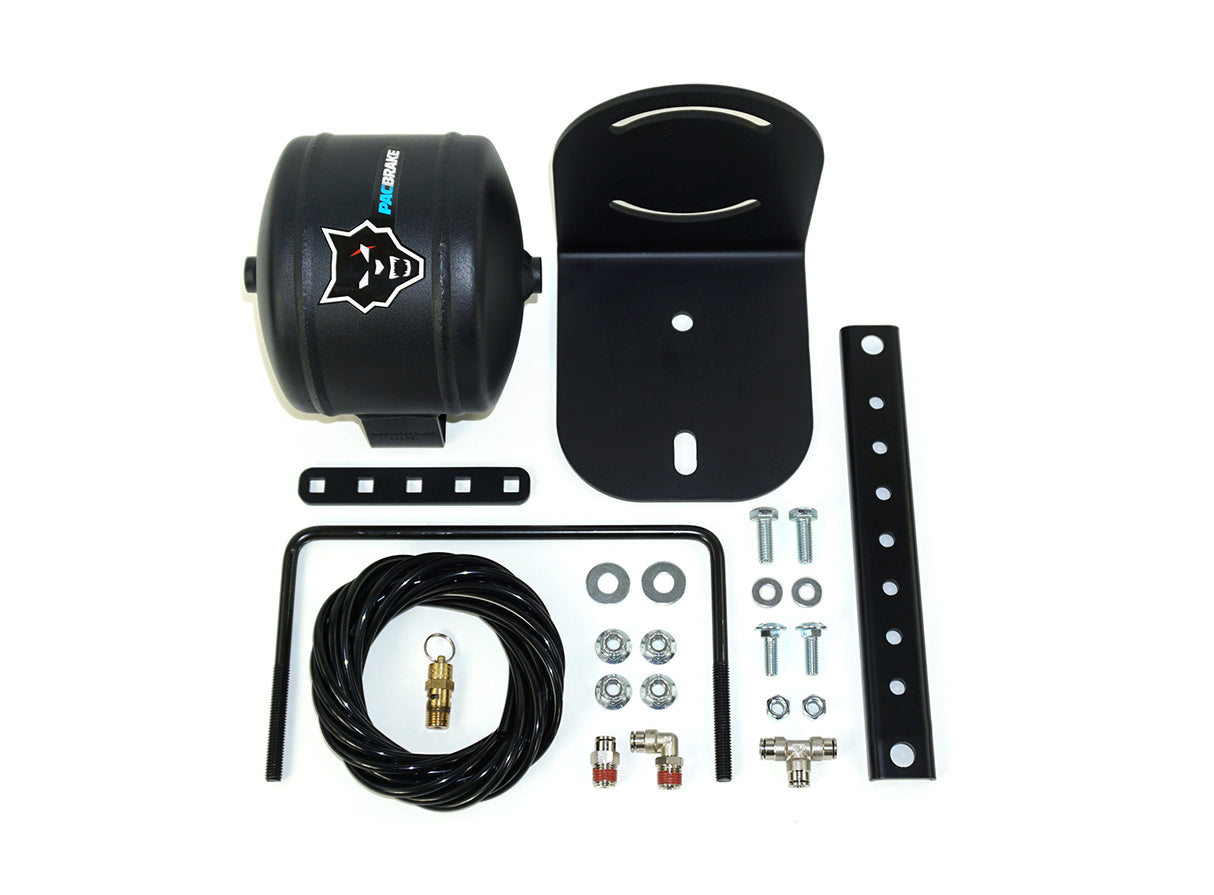

• HP10718 – ½-Gallon Air Tank Kit. Carbon steel construction with black powder-coated finish, internal anti-rust coating, and quick-mount bracket. Reduces air spring fill time and improves system responsiveness.

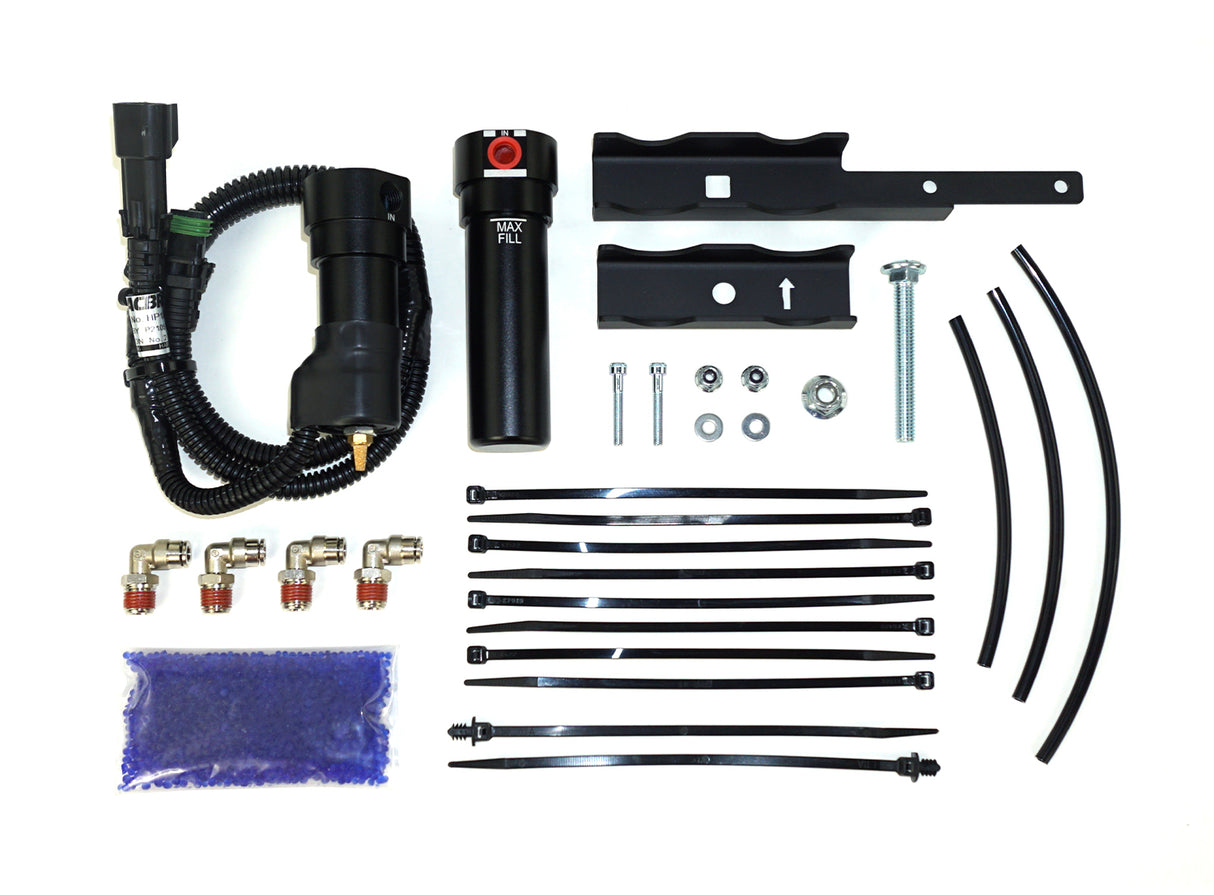

• HP10720 – Water Separator Kit. Silica bead desiccant with automatic solenoid drain removes moisture from the air system, protecting against freeze blockage and extending component life. Maintenance reminders through the BRAVO™ mobile app.

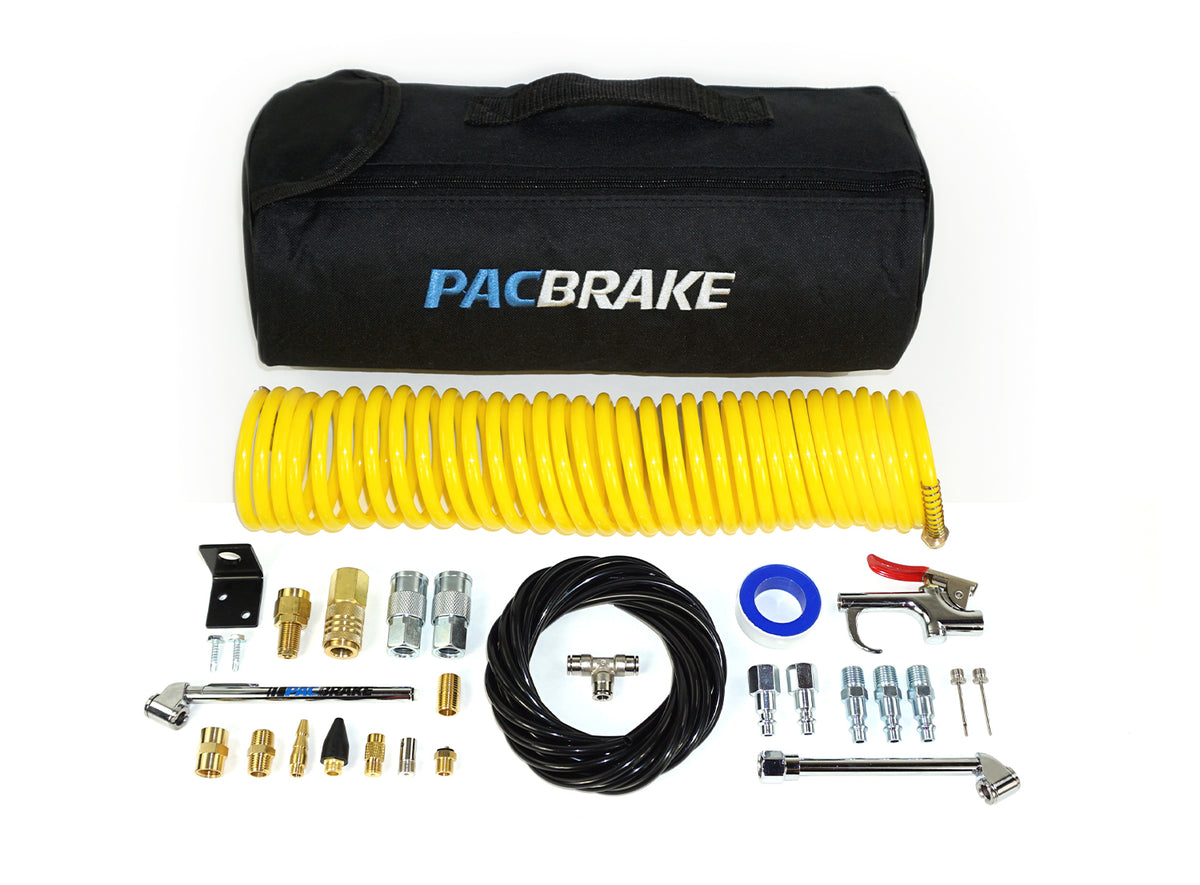

• HP10723 – Onboard Air Accessory Kit. Includes a 25 ft coiled air hose, blow gun with interchangeable nozzles, dual-head tire chuck and pressure gauge, multiple inflation adapters, and a heavy-duty nylon storage bag.



SPECIFICATIONS

• Ambient Operating Temperature Range: -40°F to +158°F [-40°C to +70°C]
• Maximum Working Pressure: 150 PSI [1034 kPa]
• Compressor Duty Cycle: Continuous at 100 PSI [689.5 kPa]
• Ingress Protection: IP67 (Requires compressor with remote-mounted intake filter)
• Wireless Connectivity Range: 30 ft [10 m] minimum
• Air Tank Capacity: ½ gallon
• Air Tank Dimensions: 6.3" x 5.3" x 6.8" [160mm x 134mm x 172mm]
• Water Separator Inlet/Outlet: ¼" Push-to-Connect 90° Swivel | Desiccant: Silica Bead | Drain: Automatic Solenoid
• Air Accessory Hose Length: 25 ft coiled | Quick Connect: ¼" Industrial Interchange

ADD-ONS FOR EVEN MORE CONTROL

• Standalone Remote Available - Prefer to keep it simple? Add the HP10660 handheld remote for full air spring control after successful set-up within the mobile BRAVO Wireless Control App.
  *Please note: A mobile app is required for initial set-up, servicing, and system notifications.

Read Less

Additional Details

Dimensions (LxWxH)

24.000 x 23.000 x 13.000

Weight

44.0 lb

UPC

628480007601

Can Dropship

Yes
