Pacbrake

Pacbrake PacBrake BRAVO Premium 2.5gal Kit (425 Compressor Water Separator Air Accessory Kit 2.5gal Tank No Remote) HP30040-CB2 | HP30040-CB2

$1,257.74 29% off MAP Pricing
$1,776.46

PacBrake BRAVO Premium 2.5gal Kit (425 Compressor Water Separator Air Accessory Kit 2.5gal Tank No Remote) HP30040-CB2

Overview

Meet the HP30040-CB2 - Pacbrake's most complete Wireless Air Control Kit. This combo kit pairs wireless air management with a ½-gallon air tank, moisture protection, and full accessory capability - everything you need to run a serious onboard air system right out of the box.

Want an independent remote control in addition to phone app control? Just add an HP10660 remote to your order.

Product Description

The HP30040-CB2 gives you the full BRAVO™ experience without the guesswork of piecing it together. Wireless control, stored air capacity, DriAir™ moisture protection, and a complete accessory kit - all bundled and ready to install. No drilling, no cutting, and no sourcing separate components. Just push-to-connect fittings, plug-in wiring, and a sealed waterproof assembly that's up and running in under an hour.

WHAT'S INCLUDED

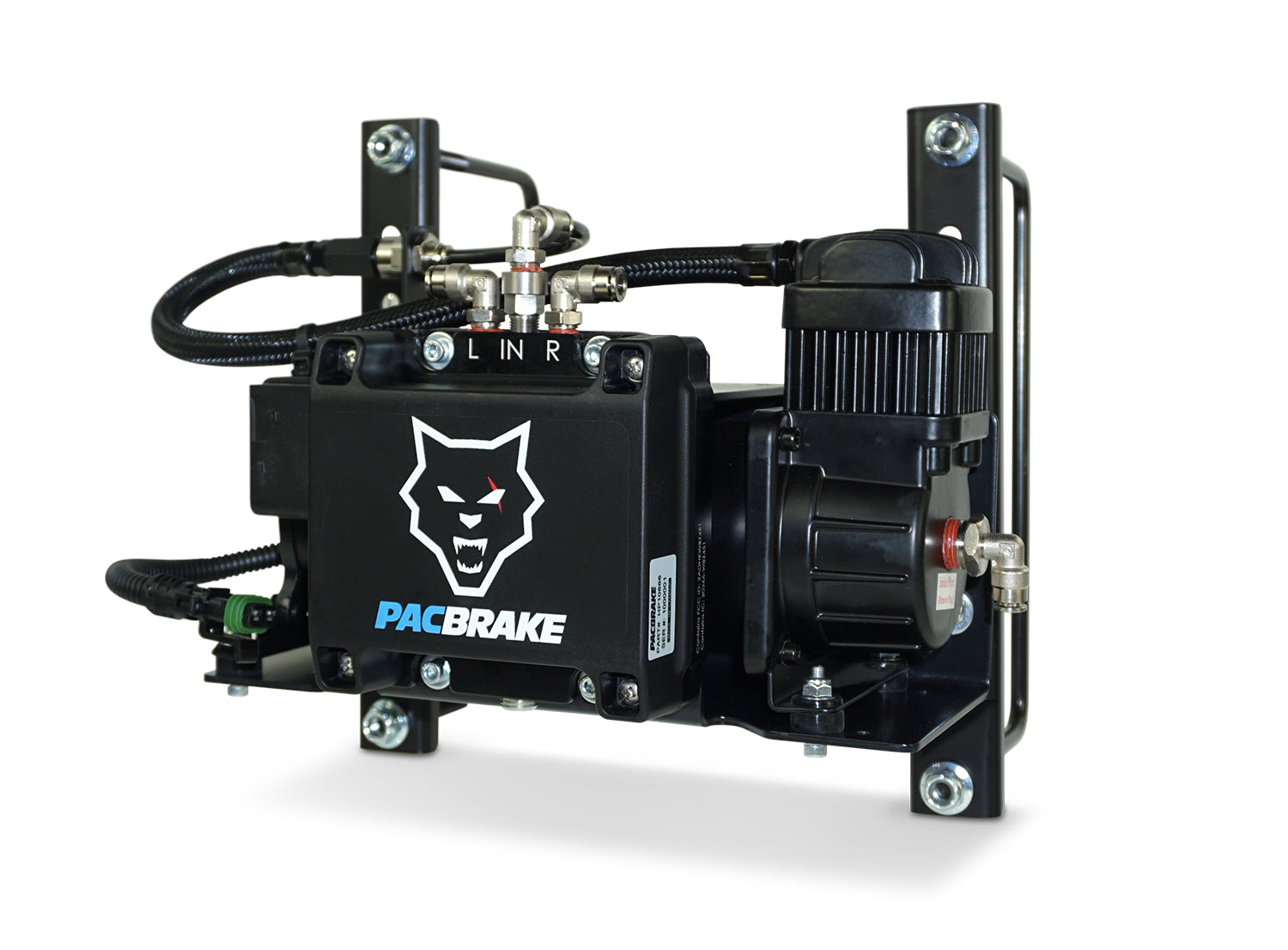

  • HP30040-QM – Wireless Air Control Kit with 425 Series compressor. Up to 150 PSI, 1.75 CFM, and 100% duty cycle at 100 PSI. IP67-sealed for total weatherproof durability.

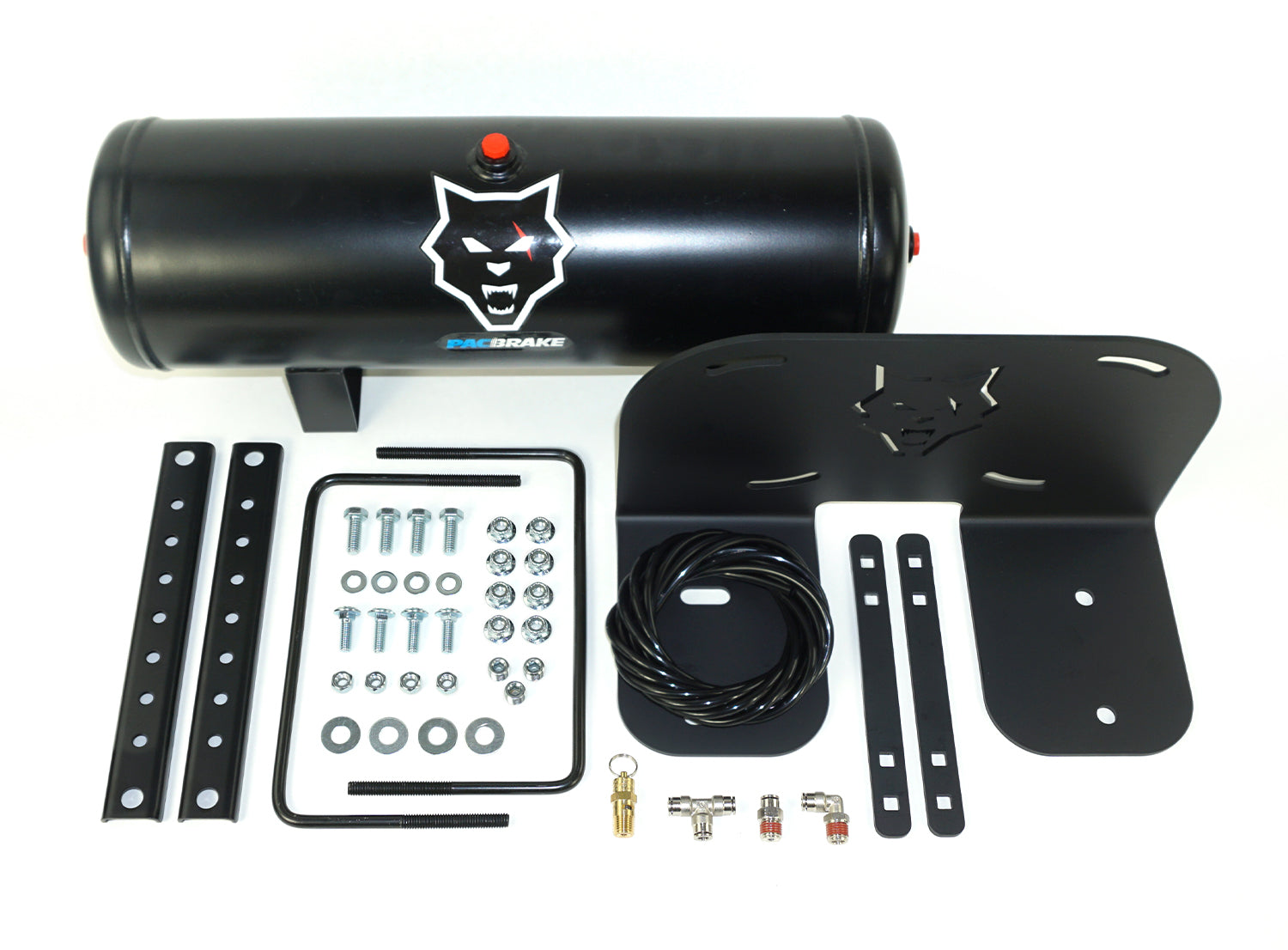

  • HP10719 – 2.5-Gallon Air Tank Kit. Carbon steel construction with black powder-coated finish, internal anti-rust coating, and quick-mount bracket. Built for users who need greater air reserve and faster response under heavier loads.

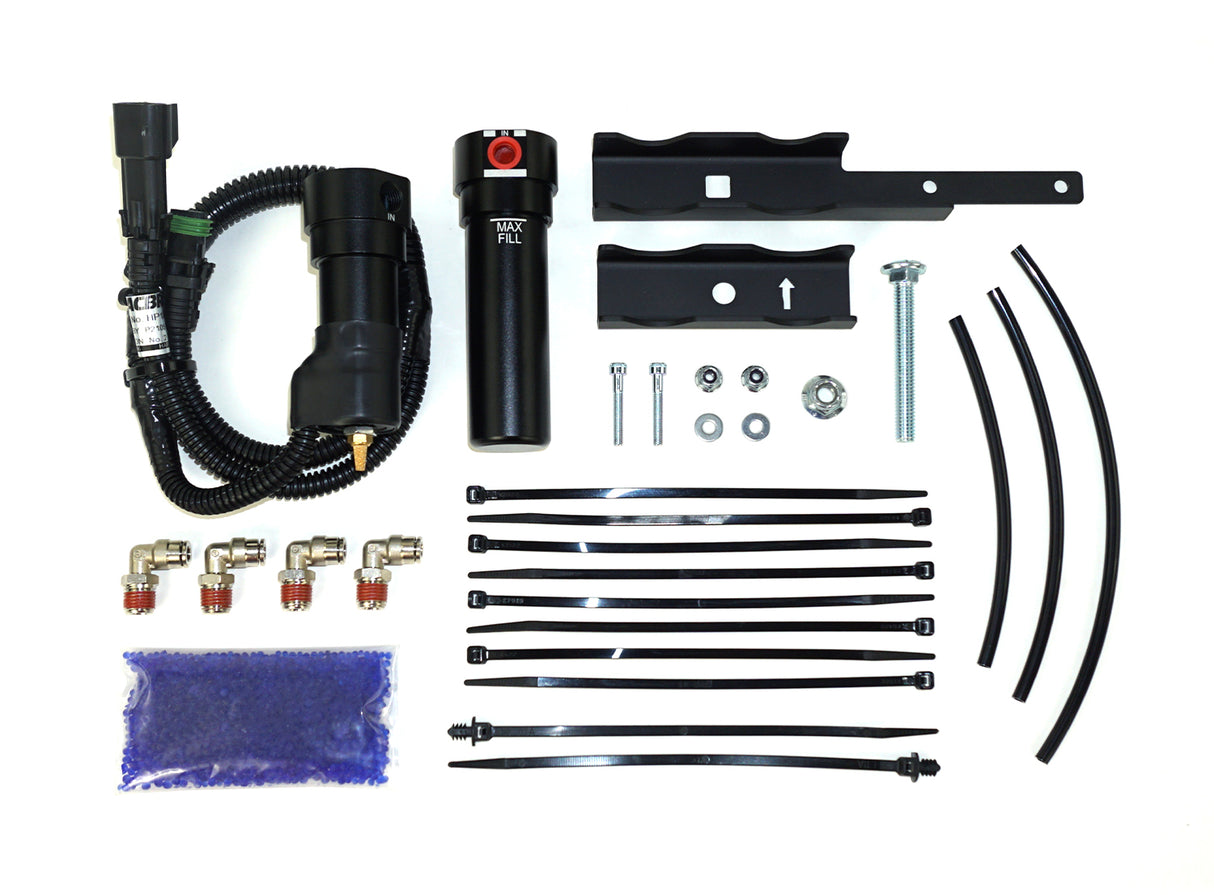

  • HP10720 – Water Separator Kit. Silica bead desiccant with automatic solenoid drain removes moisture from the air system, protecting against freeze blockage and extending component life. Maintenance reminders through the BRAVO™ mobile app.

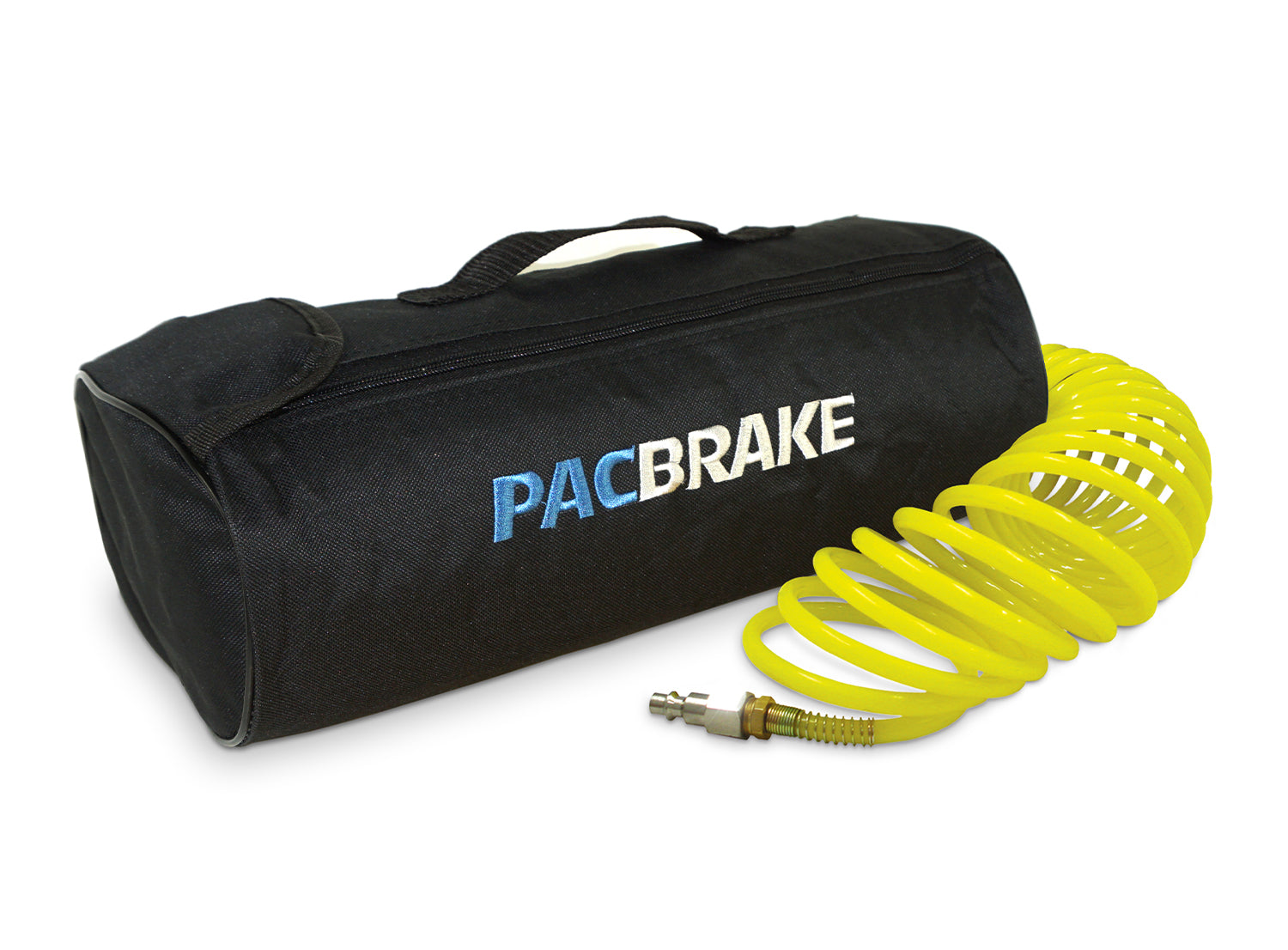

  • HP10723 – Onboard Air Accessory Kit. Includes a 25 ft coiled air hose, blow gun with interchangeable nozzles, dual-head tire chuck and pressure gauge, multiple inflation adapters, and a heavy-duty nylon storage bag.

SPECIFICATIONS

  • Ambient Operating Temperature Range: -40°F to +158°F [-40°C to +70°C]
  • Maximum Working Pressure: 150 PSI [1034 kPa]
  • Compressor Duty Cycle: Continuous at 100 PSI [689.5 kPa]
  • Ingress Protection: IP67 (Requires compressor with remote-mounted intake filter)
  • Wireless Connectivity Range: 30 ft [10 m] minimum
  • Air Tank Capacity: 2.5 gallon
  • Air Tank Dimensions: 21" x 6.9" x 8.4" [534mm x 175mm x 213mm]
  • Water Separator Inlet/Outlet: ¼" Push-to-Connect 90° Swivel | Desiccant: Silica Bead | Drain: Automatic Solenoid
  • Air Accessory Hose Length: 25 ft coiled | Quick Connect: ¼" Industrial Interchange
ADD-ONS FOR EVEN MORE CONTROL
  • Standalone Remote Available - Prefer to keep it simple? Add the HP10660 handheld remote for full air spring control after successful set-up within the mobile BRAVO Wireless Control App.
    *Please note: A mobile app is required for initial set-up, servicing, and system notifications.
