PacBrake BRAVO Wireless Controls (425 Compressor Quick Mount Tank Compatible No Remote) HP30040-QM

Overview

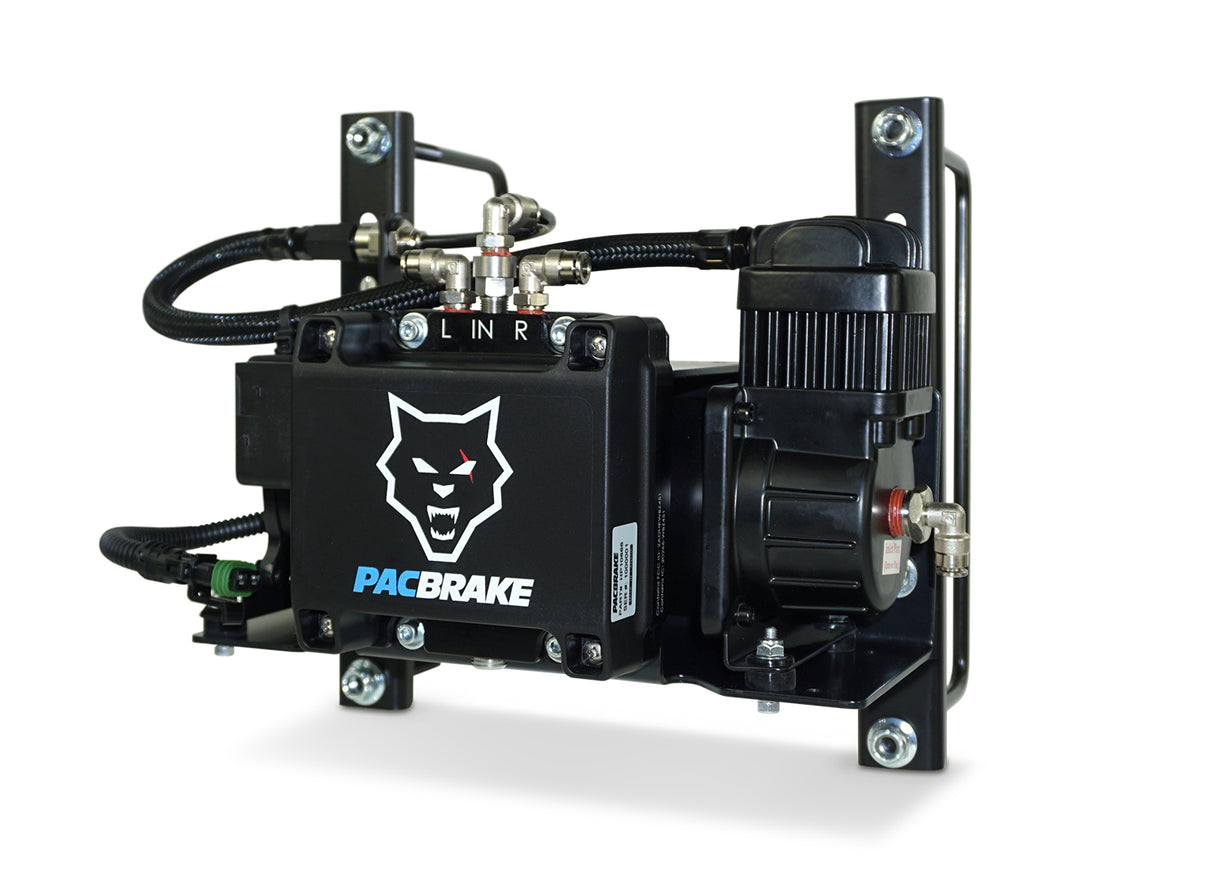

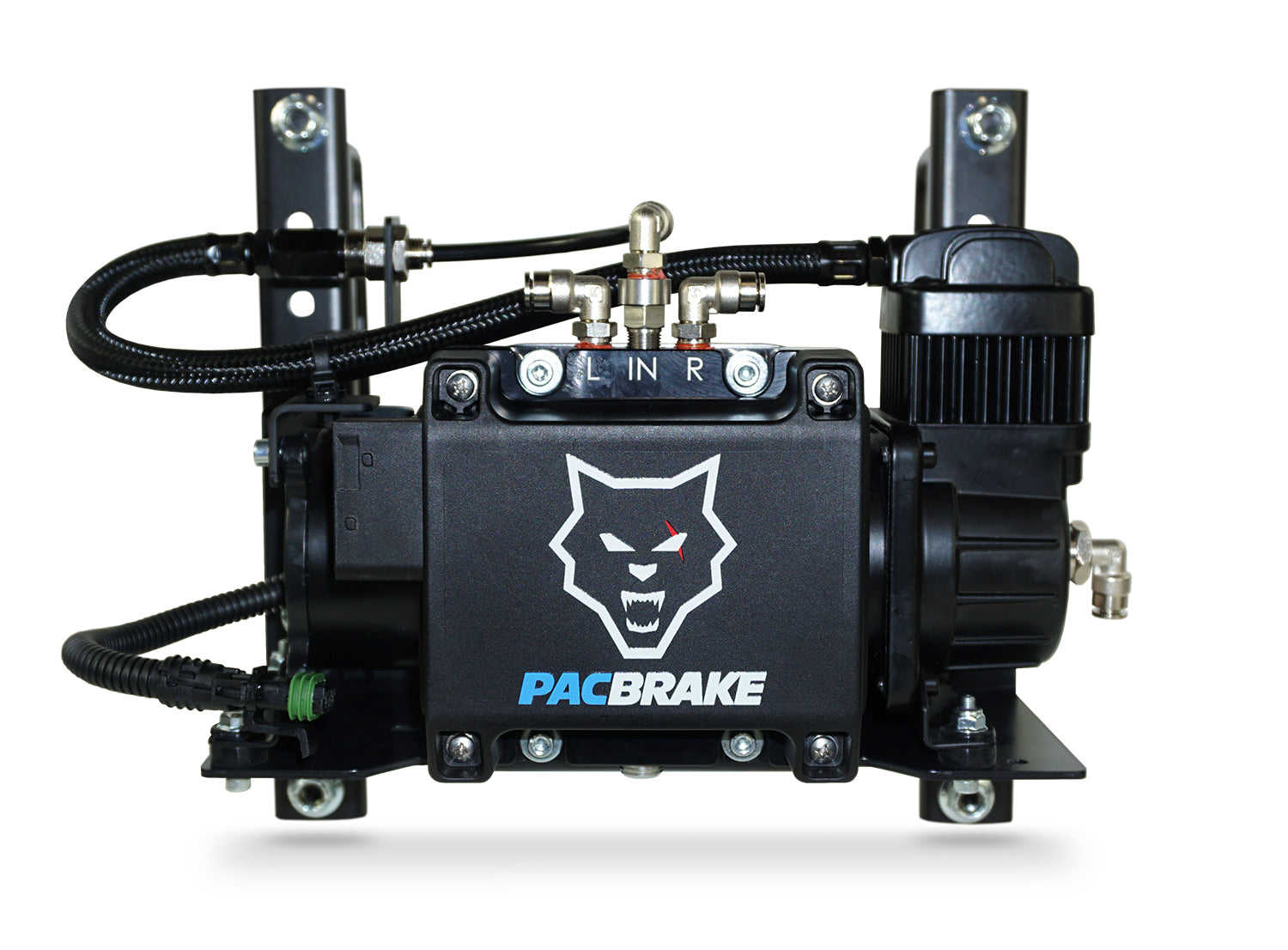

Meet the HP30040-QM — Pacbrake's most capable Wireless Air Control Kit. Built around the high-output 425 Series compressor, it delivers up to 150 PSI, 1.75 CFM, and a 100% duty cycle at 100 PSI. Whether you're towing a toy hauler through the mountains or hauling heavy on the job site, this system gives you unmatched air support without compromise.

Product Description

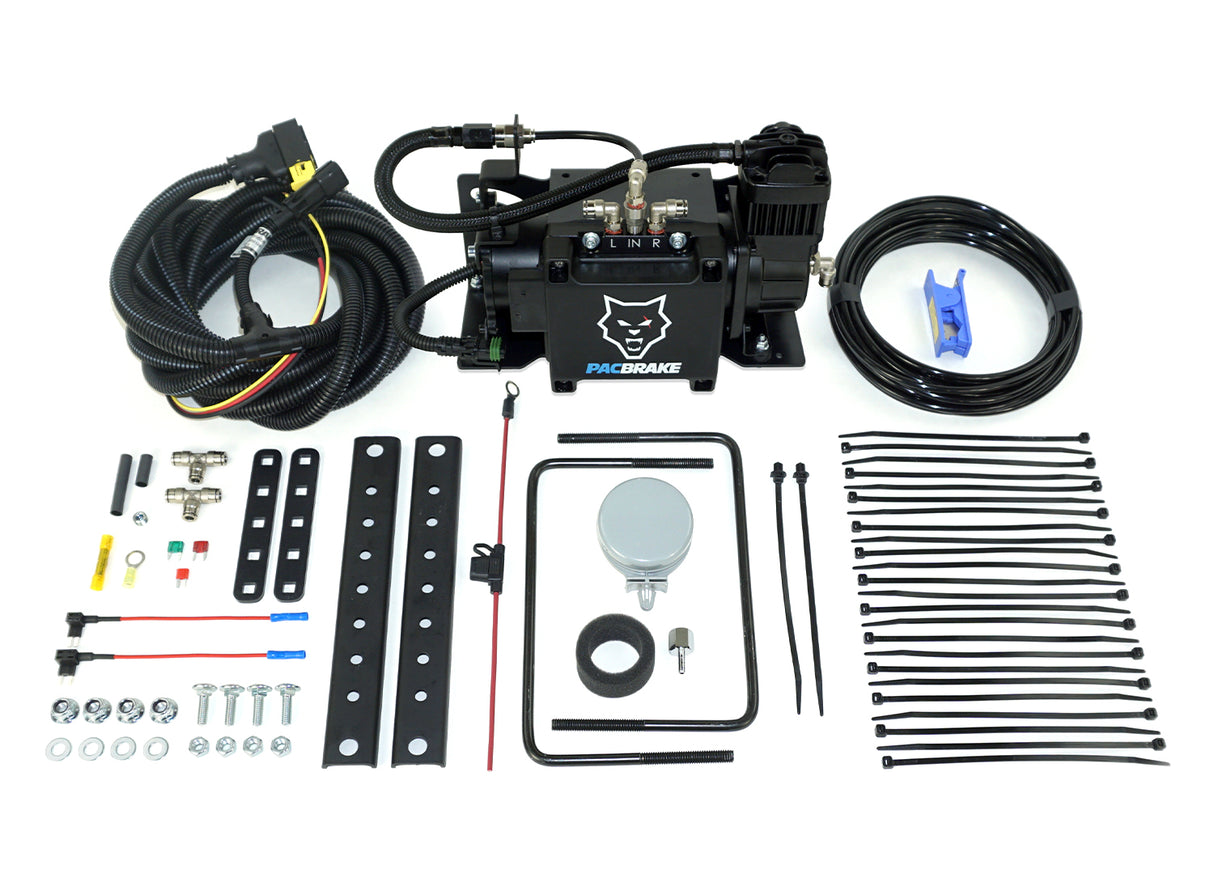

The HP30040-QM puts full wireless control of your air suspension system right in your hand. No drilling, no cutting - just push-to-connect fittings, plug-in wiring, and a sealed waterproof assembly that's ready to work in under an hour. Manage pressures, set inflation presets, and monitor your system live from the redesigned BRAVO™ mobile app.

SPECIFICATIONS

• Ambient Operating Temperature Range: -40°F to +158°F [-40°C to +70°C]
• Maximum Working Pressure: 150 PSI [1034 kPa]
• Compressor Duty Cycle: Continuous at 100 PSI [689.5 kPa]
• Ingress Protection: IP67 (Requires compressor with remote-mounted intake filter)
• Wireless Connectivity Range: 30 ft [10 m] minimum



ADD-ONS FOR A COMPLETE SET-UP

• Air Tank Compatible - Pair with the HP10718 (½ gallon) or HP10719 (2.5 gallon) air tank for increased volume and faster fill times.
• Expandable System - Add the HP10720 water separator to protect against moisture and corrosion with DriAir™ Technology, or the HP10723 onboard air accessories kit to inflate tires and inflatable water toys.
• Standalone Remote Available - Prefer to keep it simple? Add the HP10660 handheld remote for full air spring control after successful set-up within the mobile BRAVO Wireless Control App.


  *Please note: A mobile app is required for initial set-up, servicing, and system notifications.

Read Less

Additional Details

Dimensions (LxWxH)

17.000 x 12.000 x 10.000

Weight

25.0 lb

UPC

628480007557

Can Dropship

No
