Pacbrake PacBrake Water Separator and Desiccant HP10720 | HP10720
Pacbrake PacBrake Water Separator and Desiccant HP10720 | HP10720 is out of stock but may be available for drop shipment from the manufacturer.
Authorized Dealer of Pacbrake
Pacbrake PacBrake Water Separator and Desiccant HP10720 | HP10720
Product Description
PacBrake Water Separator and Desiccant HP10720
Overview
The HP10720 Water Separator Kit features Pacbrake's exclusive DriAir™ Technology - an innovative system combining an active water separator with desiccant filtration to keep your air lines dry, freeze-free, and corrosion-free.
Product Description
The HP10720 Water Separator Kit integrates with BRAVO™ air management systems to eliminate moisture at the source. DriAir™ Technology runs a two-stage defence: the water separator pulls free water out of the compressed air stream, and the silica bead desiccant captures what's left before it can reach your air springs or lines.
The solenoid auto-purges collected water on its own - no manual draining required, unlike. . .
Additional Details
Pacbrake PacBrake Water Separator and Desiccant HP10720 | HP10720
PacBrake Water Separator and Desiccant HP10720
Overview
The HP10720 Water Separator Kit features Pacbrake's exclusive DriAir™ Technology - an innovative system combining an active water separator with desiccant filtration to keep your air lines dry, freeze-free, and corrosion-free.
Product Description
The HP10720 Water Separator Kit integrates with BRAVO™ air management systems to eliminate moisture at the source. DriAir™ Technology runs a two-stage defence: the water separator pulls free water out of the compressed air stream, and the silica bead desiccant captures what's left before it can reach your air springs or lines.
The solenoid auto-purges collected water on its own - no manual draining required, unlike competing systems that put that job on you. When the desiccant needs replacing, the BRAVO™ mobile app notifies you automatically.

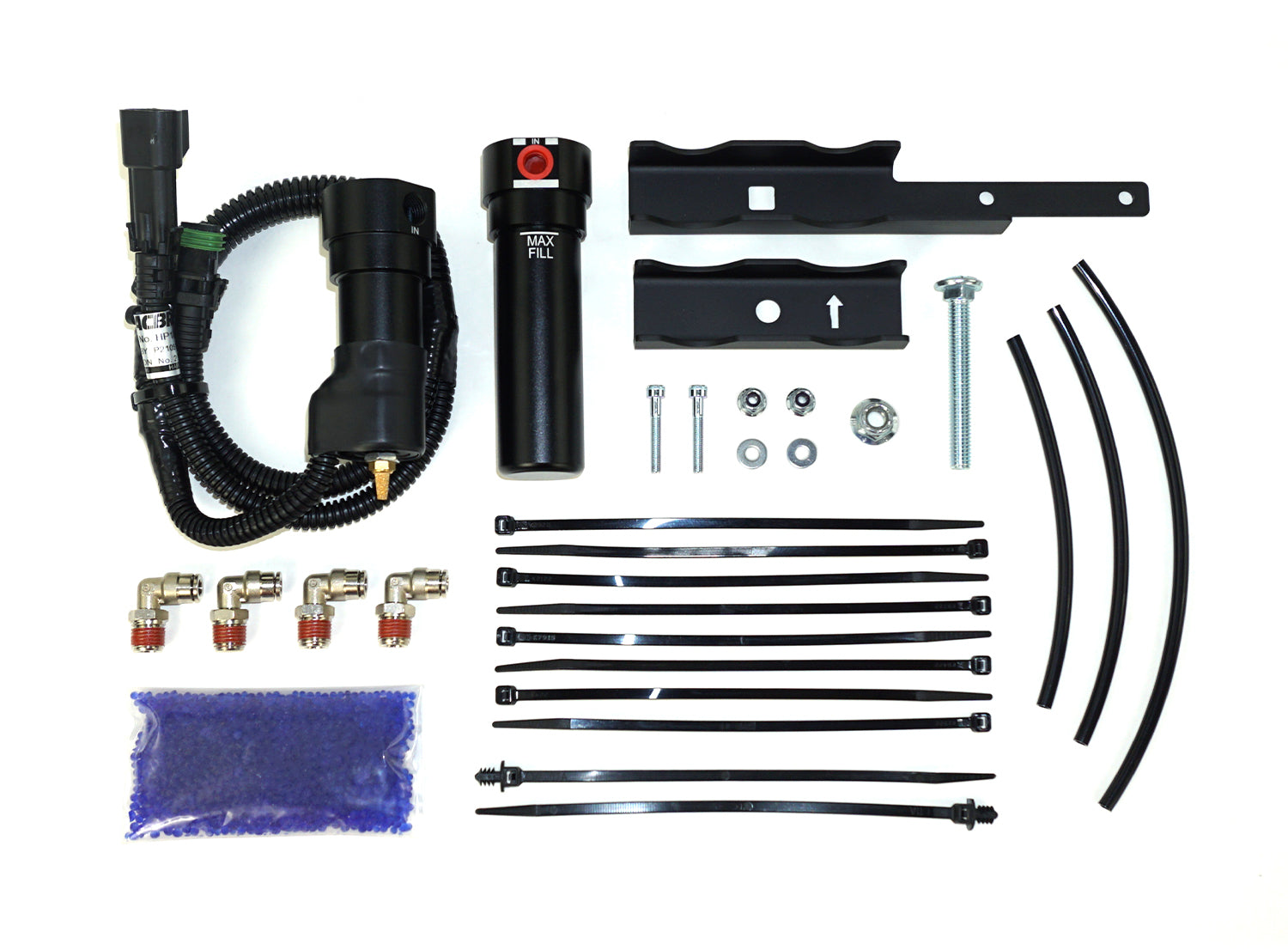

KIT DETAILS
- Water Separator with Integrated Bravo Mount
- Silica Bead Desiccant (installed)
- Spare Desiccant (1 included)
- Installation Hardware
SPECIFICATIONS
- Max Working Pressure: 150 psi [1.03 MPa]
- Inlet/Outlet Configuration: 1/4” Push-to-Connect 90° Swivel
- Desiccant Type: Silica Bead
- Drain Type: Automatic Solenoid
- Drain Port: 1/4” Sintered Brass Filter
- Operating Temperature: -40°C to 70°C
- Dimensions: 8.8 inch x 3 inch x 5.2 inch (LxWxH) [222mm x 76mm x 133mm]
- Weight: 2 lbs [ 0.92 kg]
- Mounting Type: Bravo Compressor Mounting Bracket
