Industrial Injection INDUSTRIAL INJECTION 2003-2018 5.9L 6.7L CUMMINS 12MM GORILLA GIRDLE KIT PDM-06020 | PDM-06020
Industrial Injection INDUSTRIAL INJECTION 2003-2018 5.9L 6.7L CUMMINS 12MM GORILLA GIRDLE KIT PDM-06020 | PDM-06020 is out of stock but may be available for drop shipment from the manufacturer.
Authorized Dealer of Industrial Injection
Industrial Injection INDUSTRIAL INJECTION 2003-2018 5.9L 6.7L CUMMI...
Product Description
2003-2018 Cummins Gorilla Girdle W/ ARP XL Main Studs Before you start, READ AND UNDERSTAND THE INSTRUCTIONS. (12mm ARP 2000, 125 ft lbs) ((14mm ARP, 150 ft lbs)) NOTE: On certain 6.7L Cummins engines that come factory with a windage tray instead of a factory girdle you will be required to get the early style longer oil pickup tube bolts as well as an early style oil pickup tube. We are currently working on a fix for this to prevent any further install issues. Cummins oil pickup tube part number: 3949692 (qty 1) Cummins oil pickup tube bolt part number: 3902460 (qty 2)

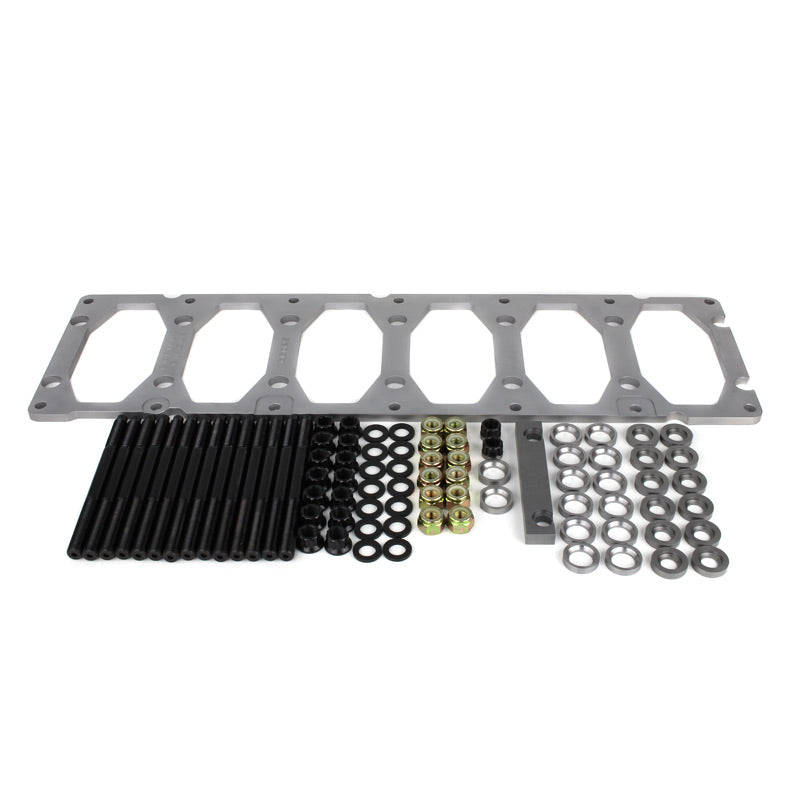

Features:
- 1 Gorilla Girdle, 14 top spacers, (large hole)
- 12 bottom spacers (small hole)
- 1 rear main spacer bar
- 2 rear main stud nuts (12 point)
- 12 main stud nuts (Nylock).
- Available in 12mm or 14mm
- 14MM Kit will require a stamped oil pan
